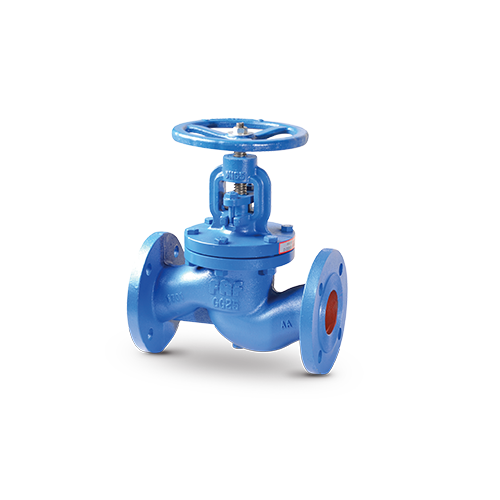

2100 / GLOBE BELLOW SEAL
| PRODUCTION STANDARDS | |
| DN15–DN250 PN 16 | |
| Design | EN 13789 |
| Connection | EN 1092-2 / ISO 7005-2 Flanged |
| Face to Face | EN 558 Series 1 / DIN 3202 F1 |
| Marking | EN 19 |
| Tests | EN 12266-1 |
| Corrosion Protection | Industrial Epoxy |
Features
- Has cast iron body; stem and sealing seat are made of stainless steel.
- For using in high temperatures, can be coated with high temperature resistant coating.
- No maintenance needed, can be operated with lower torque ratings.
- Zero stem leakage eliminates media loss and satisfies environmental regulations.
Temperature
- +200 °C
Scope of Application
- Steam
- Superheated water
- Hot & cold water
- Power & heat engineering
- Industrial technologies
- Fluids without acidity or alkalinity properties
