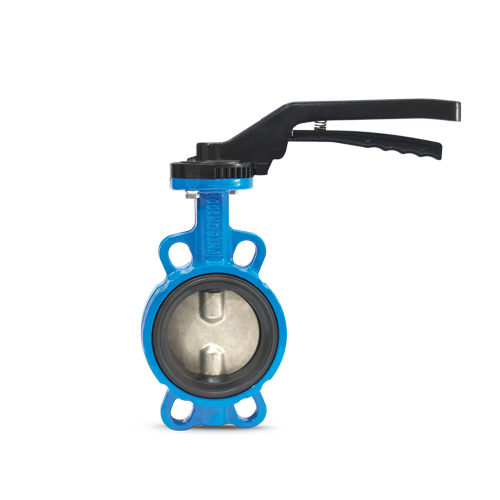

3500 / BUTTERFLY VALVE – WAFER
| PRODUCTION STANDARDS | |
| DN40 → DN600 PN 6-10-16 CLASS 150 | |
| Design | EN 593 |
| Connection | Wafer Type ISO 7005-1 EN 1092-1 |
| Face to Face | EN 558 Series 20 |
| Marking | EN 19 |
| Tests | EN 12266-1 |
| Corrosion Protection | Electrostatic Powder Epoxy |
Features
- Equipped with various disc materials and can be used in various flow types and different applications with the EPDM, NBR and VITON seat options.
- Compared to other valve types, with its compact dimensions offers the advantages of lightweight, easy installation and cost effectiveness.
- Head loss is at minimum level through the double shaft design of FAF Valve.
- The inner and outer surfaces of valve body are coated with electrostatic fusion bonded epoxy (FBE) / oven baked powder epoxy coating. Smooth operation and longer life is maintained in tough conditions.
- Higher coating thicknesses can be applied upon request.
- Up to DN 300 (inclusive) sizes are supplied with hand lever as default DN 350 (inclusive) and above are supplied with gear box as default.
- Electrical or Pneumatic actuators directly fit on valve top flange (ISO 5211)
- No need for any additional intermediary parts.
- Can be installed in any desired position
- Maintenance-free.
- Four flange mounting semi-lugs ensure correct valve location when installing
- The valve body and disc are accurately machined which results in low operating torque and long service life and reliability.
Temperature
- +130 °C (EPDM)
- +100 °C (NBR)
- +220 °C (VITON)
Scope of Application
- Chamber installation
- Installation in plants
- Pipelines
- Water treatment plants
- Pumping stations
- Tanks
- Seawater applications
- Power plants (cooling water pipelines)
- Industry
