control valves

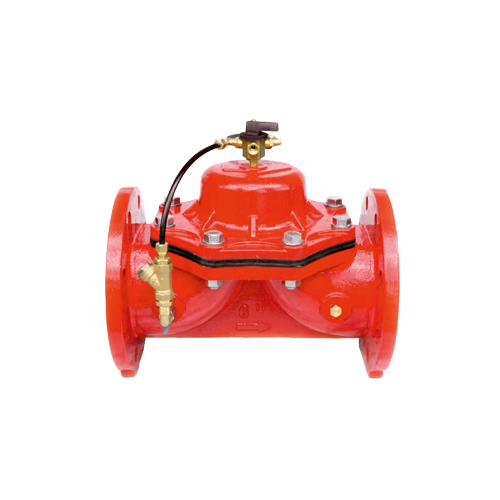

7530 / MANUAL CONTROL VALVE
| PRODUCTION STANDARDS | |
| DN50 → DN300 | |
| Operation Pressure | 0,7 – 16 bar (10 – 240 psi) |
| Connection | Flanged EN1092-2 Threaded ISO (BSP) – ANSI (NPT) |
| Corrosion Protection | Electrostatic Powder Epoxy |
Features
- Minimum pressure loss
- Adjustable isolating rate (optional)
- Easy maintenance
- Control in different voltages
- Easy and zero adjustment to demanded pressure
- Does t require maintenance in operation for a long time due to its corrosion resistant components.
- Has a long working life in operation since coating has been made with phosphorization and over-dried epoxy powder paint.
- Performs perfect modulation in variable flows and even too low flow rates close to zero.
- Has a wide range of application with use of different pilot valves.
Temperature
- -10 °C +80 °C
Scope of Application
- Agricultural irrigation
- Supply of water fire extinguishing
- Various applications of industrial systems.
- Oil & gas applications
- Household implementation
